Comacchio CH650 WPD

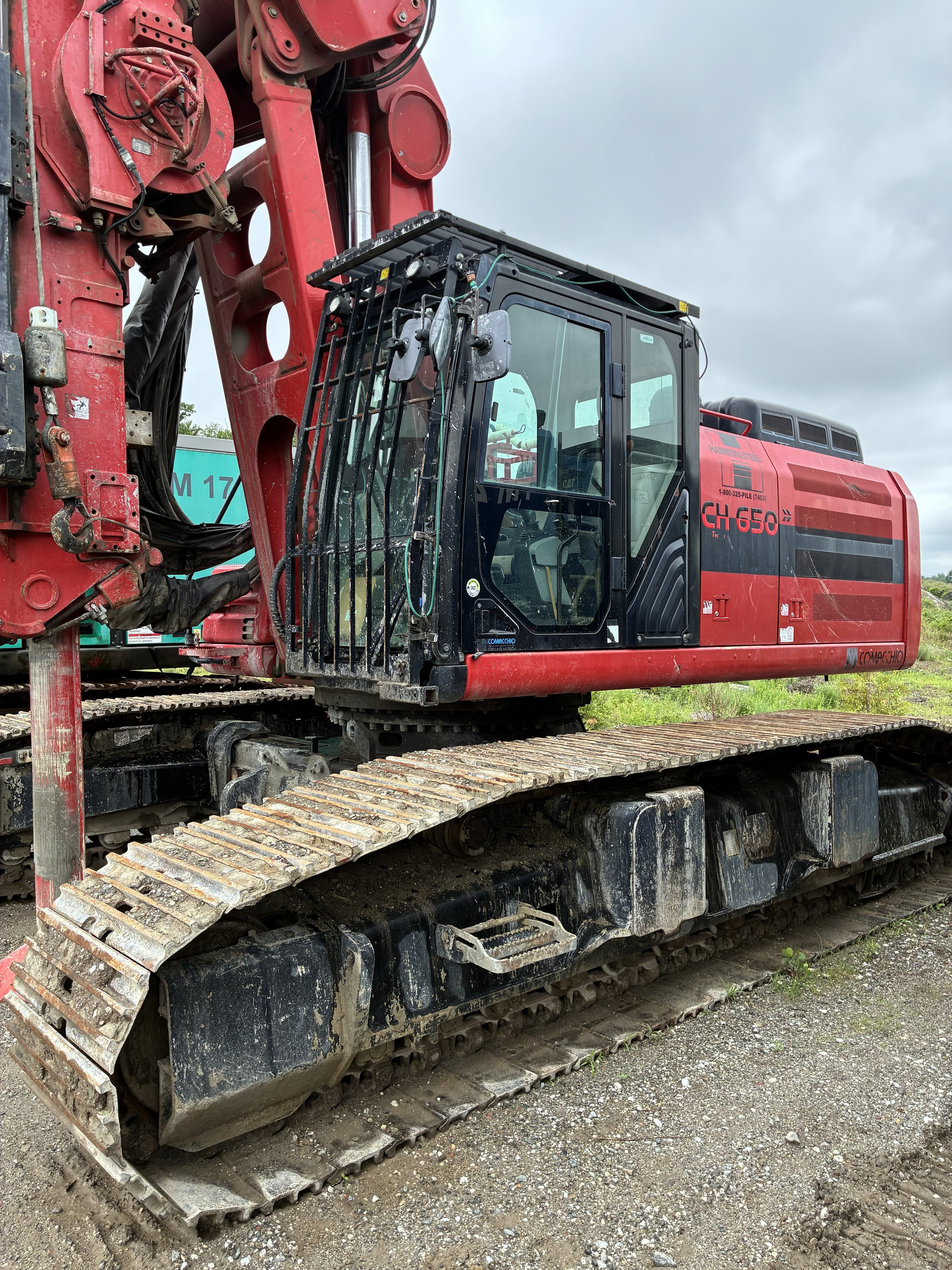

Red and black Comacchio CH650 WPD crawler drilling rig for piling and foundation work on muddy ground.
Red and black Comacchio CH650 WPD drilling rig on muddy tracks under a cloudy sky.

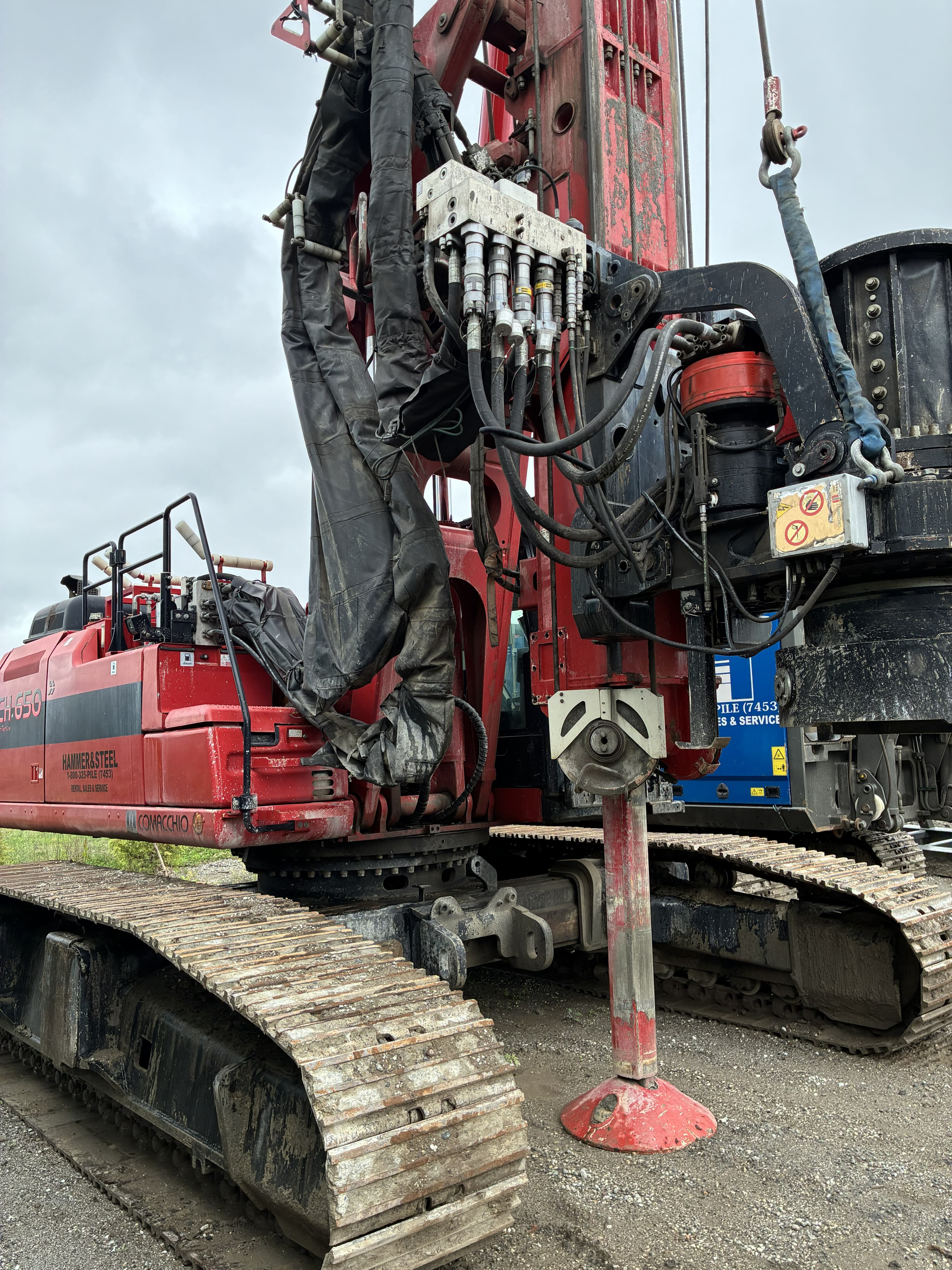

Red Comacchio CH650 WPD drilling rig on tracks, with hydraulic systems and a deployed stabilizer leg.
Piling/foundation drilling equipment, including a large auger and other heavy machinery parts, sits in an overgrown, gravelly area.
Metal data plate with S/N: 036887 and specs from a Comacchio CH650 WPD drilling rig.

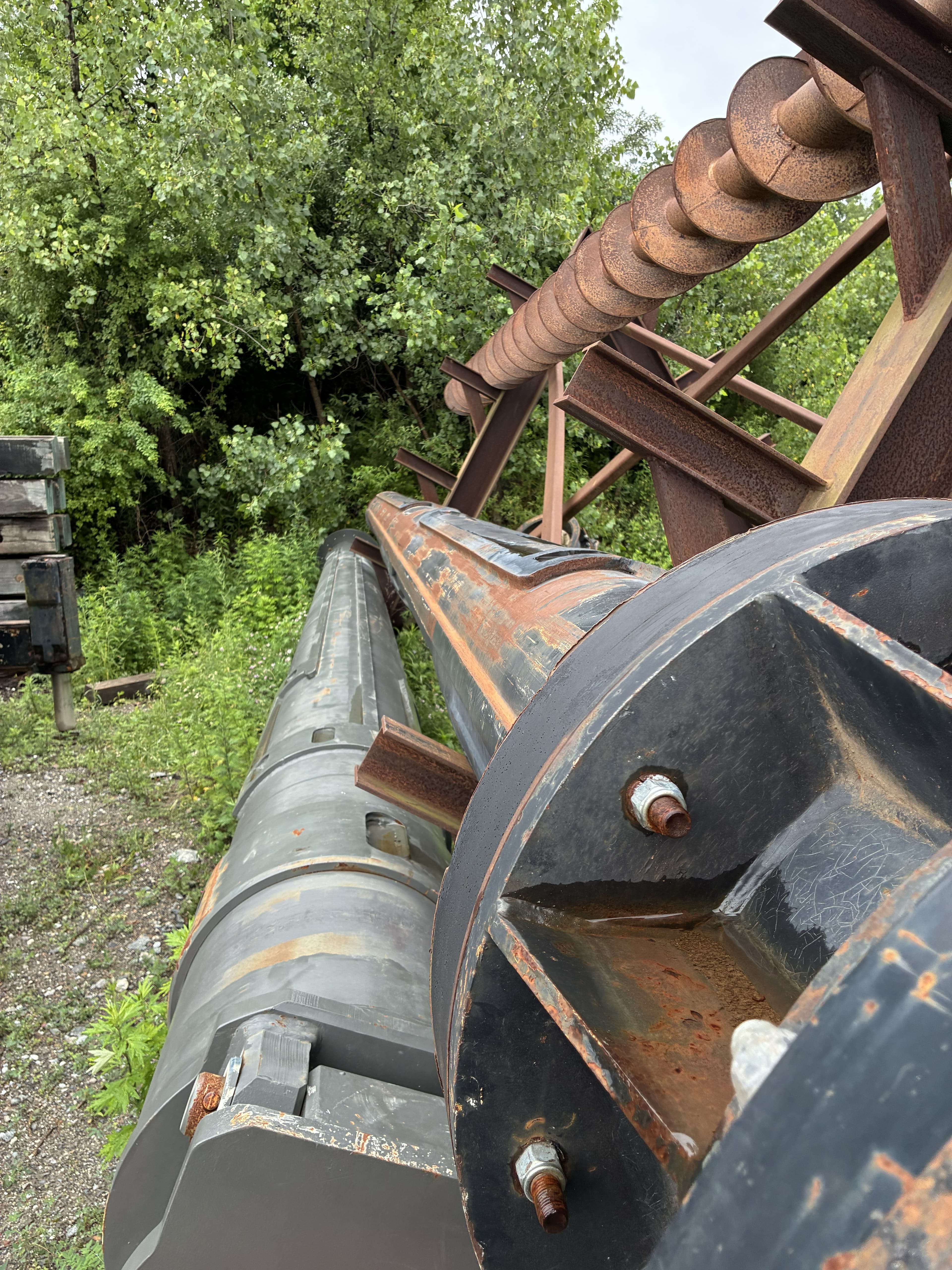

Rusty Comacchio CH650 WPD drilling rig components, including a large auger, against a backdrop of green trees.

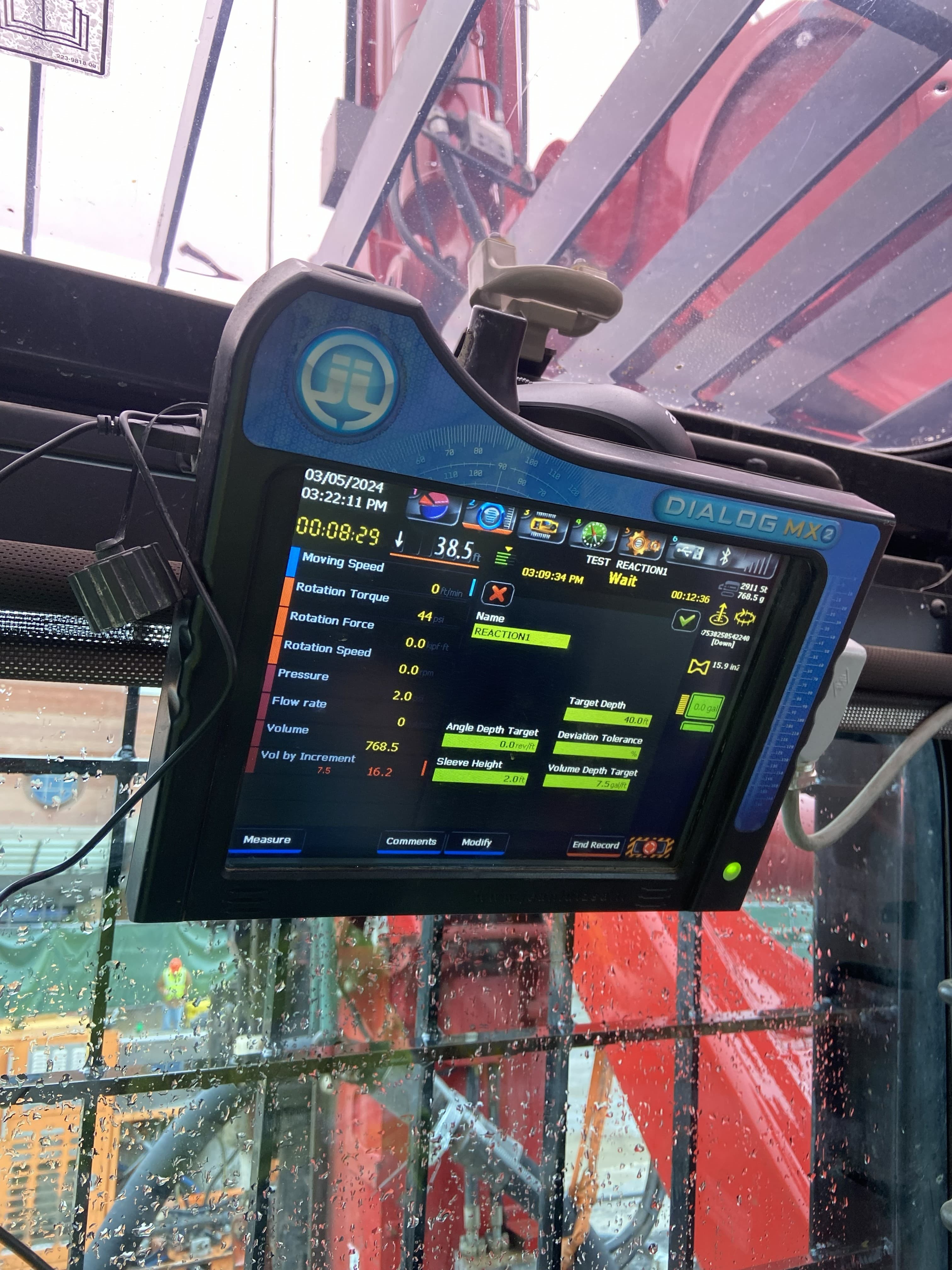

Inside a Comacchio CH650 WPD drilling rig cabin, a digital display shows drilling parameters through a rain-streaked window.

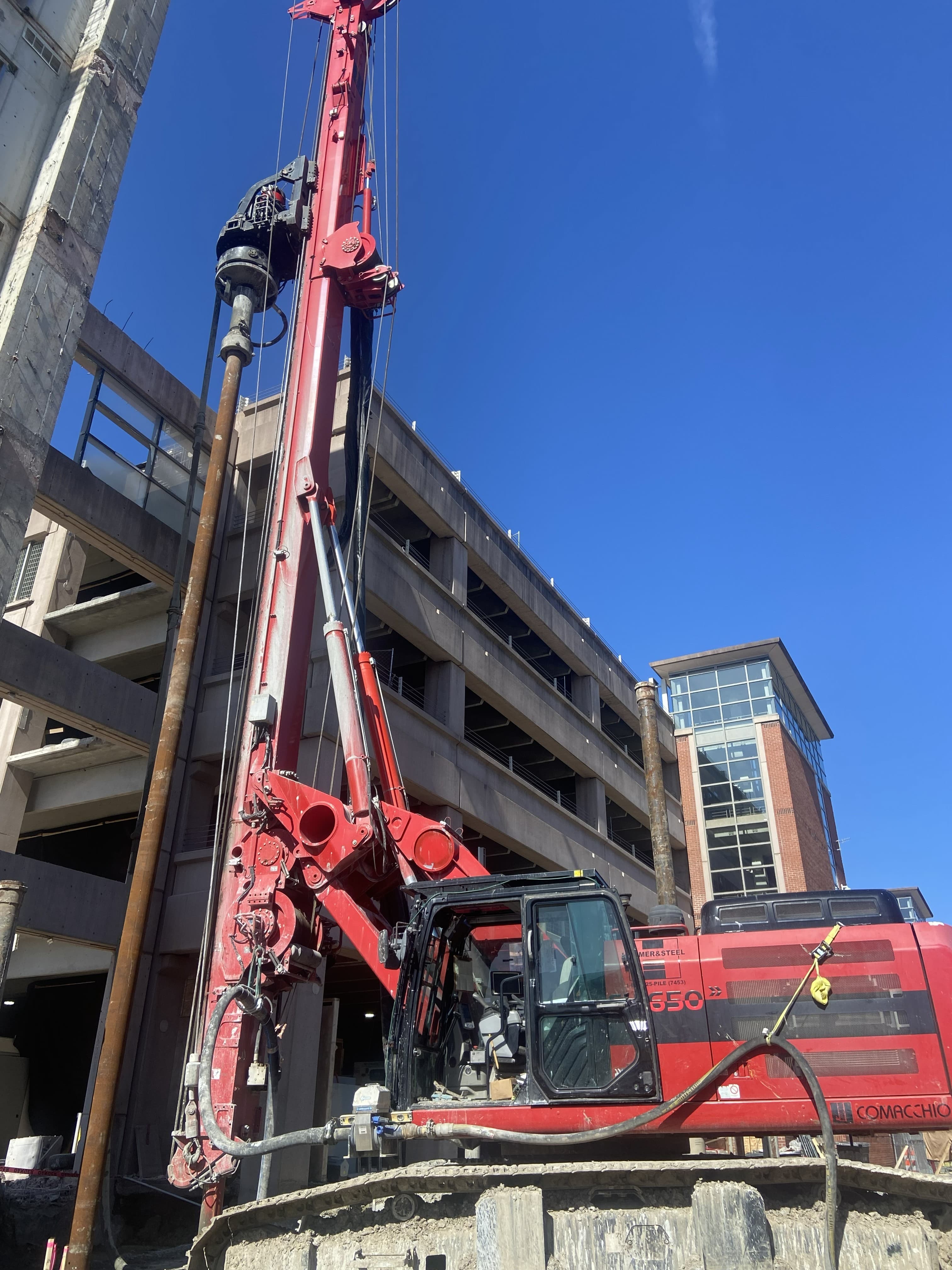

Red Comacchio CH650 WPD drilling rig with a long drill pipe at a construction site next to concrete buildings under a blue sky.
Red and black Comacchio CH650 WPD crawler drilling rig for piling and foundation work on muddy ground.
Red and black Comacchio CH650 WPD drilling rig on muddy tracks under a cloudy sky.
Red Comacchio CH650 WPD drilling rig on tracks, with hydraulic systems and a deployed stabilizer leg.
Piling/foundation drilling equipment, including a large auger and other heavy machinery parts, sits in an overgrown, gravelly area.
Metal data plate with S/N: 036887 and specs from a Comacchio CH650 WPD drilling rig.
Rusty Comacchio CH650 WPD drilling rig components, including a large auger, against a backdrop of green trees.
Inside a Comacchio CH650 WPD drilling rig cabin, a digital display shows drilling parameters through a rain-streaked window.
Red Comacchio CH650 WPD drilling rig with a long drill pipe at a construction site next to concrete buildings under a blue sky.

Description

Includes drive plate and grout around knuckle for displacement piles. Jean Lutz screen (10” in-cab screen, flow meter, grout pressure sensor, torque sensor). Fully serviced at Comacchio dealer April 2026. The Comacchio CH650 is a 70-ton, high-torque, self-erecting multipurpose foundation rig capable of Kelly drilling, CFA, displacement piling, soil mixing, and cased pile construction. Its fast mobilization, 225-ft drilling depth, large-diameter capability (up to 8-ft), and flexible configurations make it one of the most versatile deep foundation rigs in its class. High torque and powerful crowd system (up to 193,000 ft-lb rotary torque, up to 74,200 lb pull-up/pull-down force, main winch pull of 56,200 lb).
At a glance

The 2017 Comacchio CH650 WPD is a drilling rig listed new in Sparta, United States, with 3,607 hours on the meter. Its weight capacity is listed as 70 tons.

Category
Drilling Rigs
Condition
New
Location
United States
Brand
Comacchio
Model
CH650 WPD
Hours of Usage
3607hr
Year of Manufacture
2017
Price
$650,000 USD
Send Message to the Seller

Specifications

Weight Capacity
70 tons
Max Drilling Depth
225 ft
Max Drilling Diameter
8 ft
Max Rotary Torque
193,000 ft-lb
Max Pull-up/Pull-down Force
74,200 lb
Main Winch Pull
56,200 lb
Instrumentation
Jean Lutz screen (10” in-cab screen, flow meter, grout pressure sensor, torque sensor)
Included Features
Drive plate and grout around knuckle for displacement piles
Last Service Date
April 2026
Hours As Of
6/1/2026
