COMACCHIO GEO 909 GT - HYDRAULIC CRAWLER MOUNTED DRILL RIG

Comacchio GEO 909 GT hydraulic crawler drill rig with tall mast in an industrial yard under a cloudy sky.

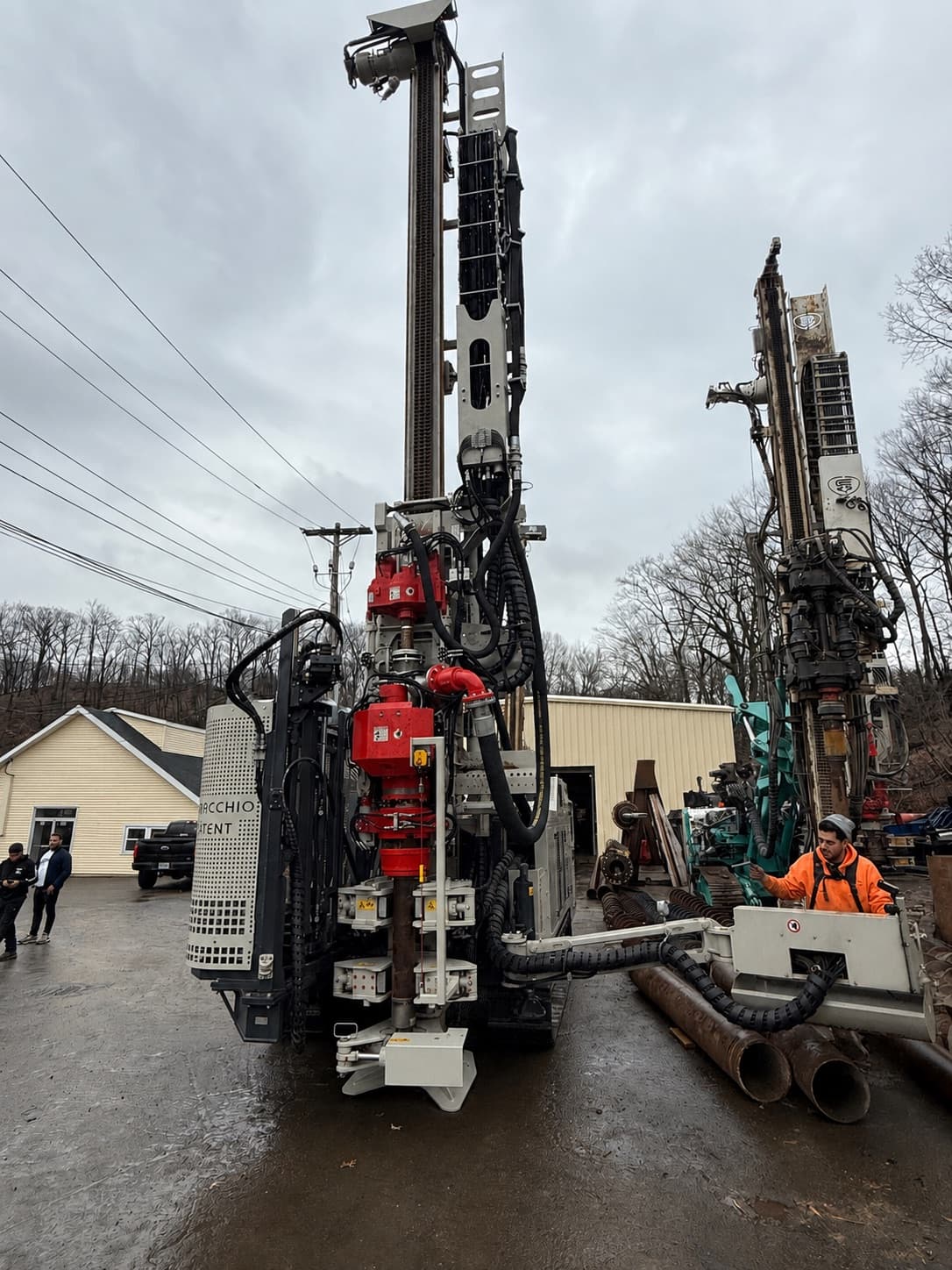

Comacchio Geo 909 GT hydraulic crawler drill rig for piling/foundation, operated by a worker.
Comacchio GEO 909 GT hydraulic crawler drill rig for piling/foundation work, on muddy ground with bare trees.

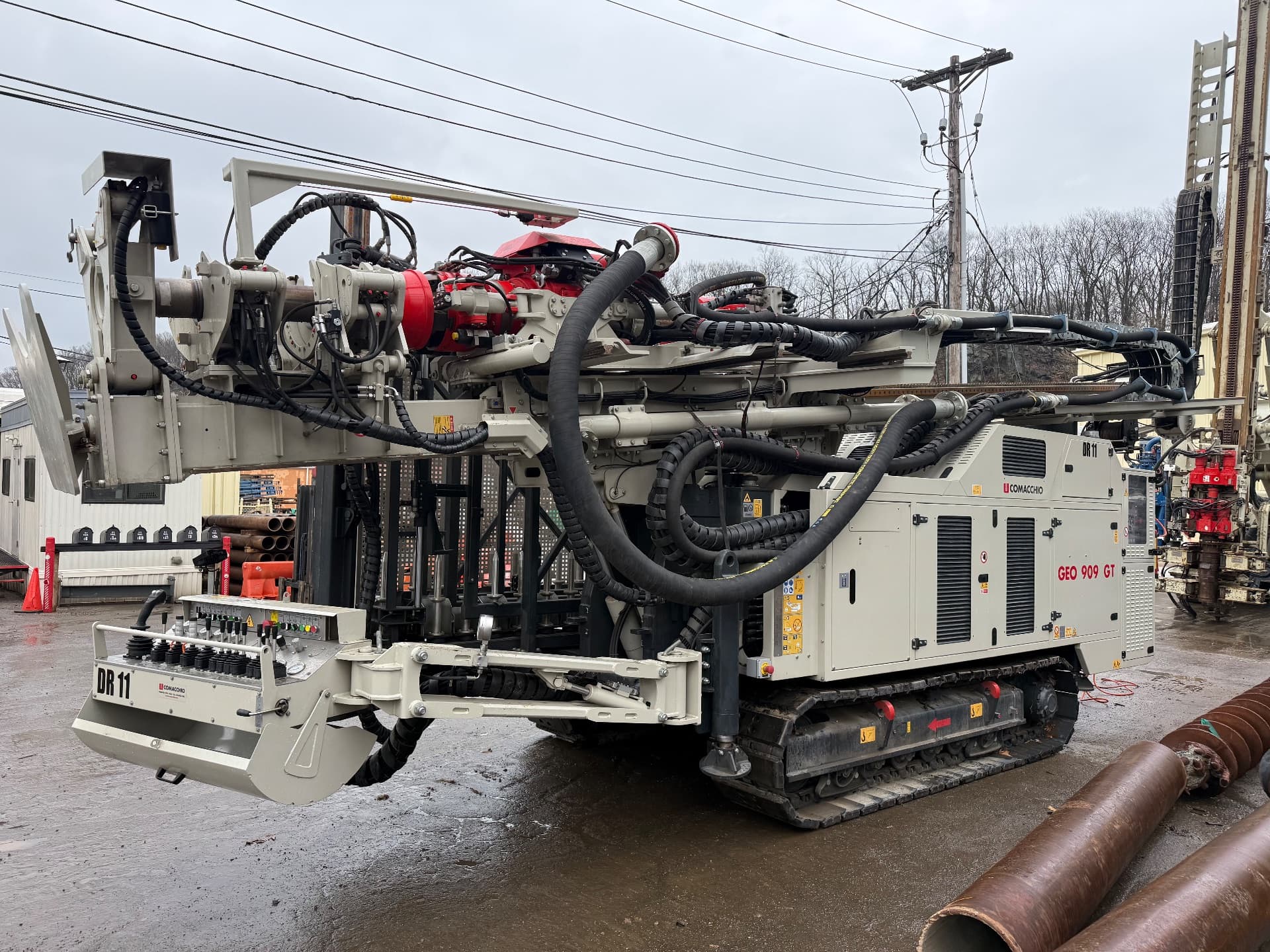

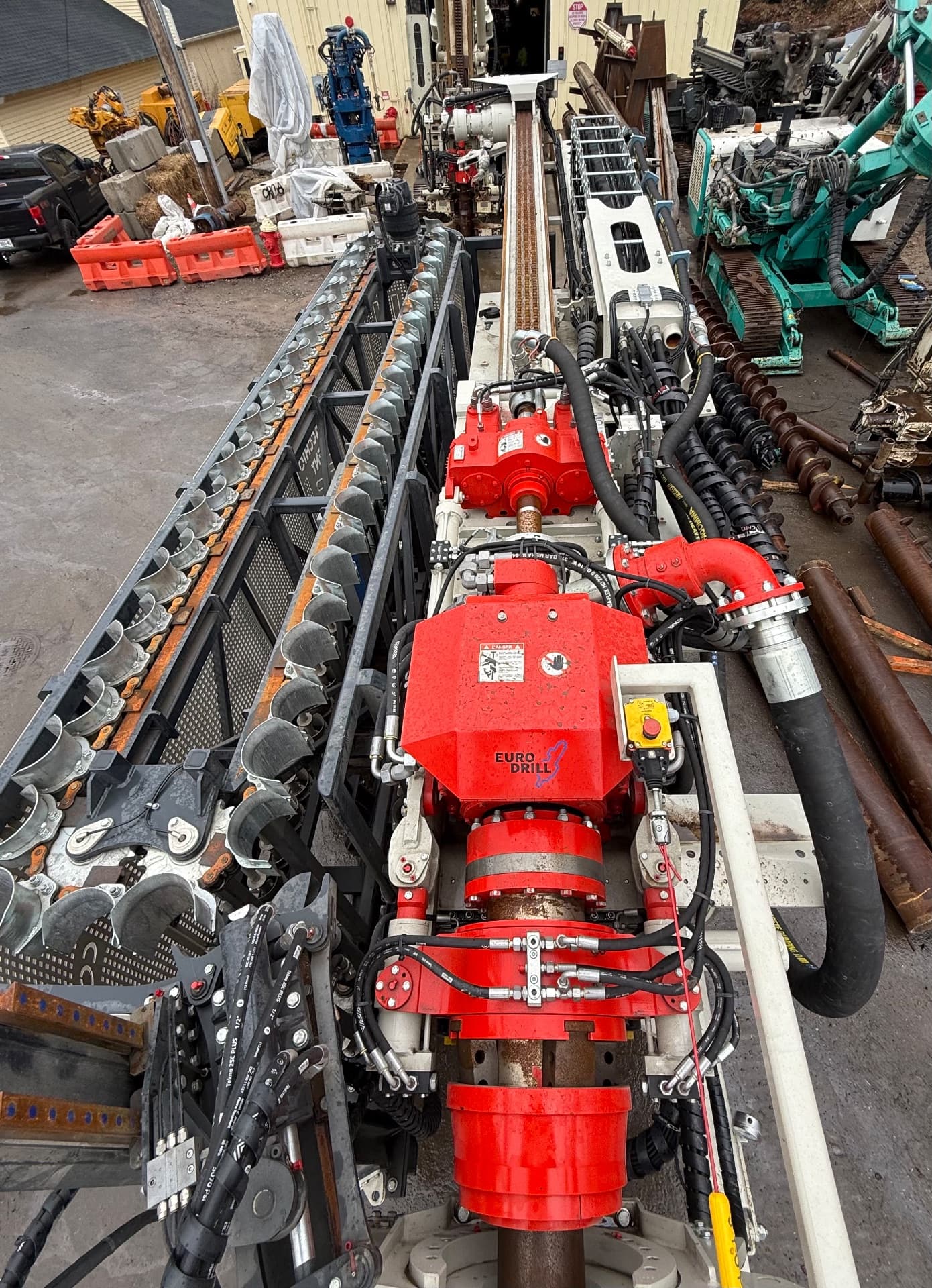

Red and white Comacchio GEO 909 GT hydraulic crawler drill rig with augers, drill head, and hydraulic lines.

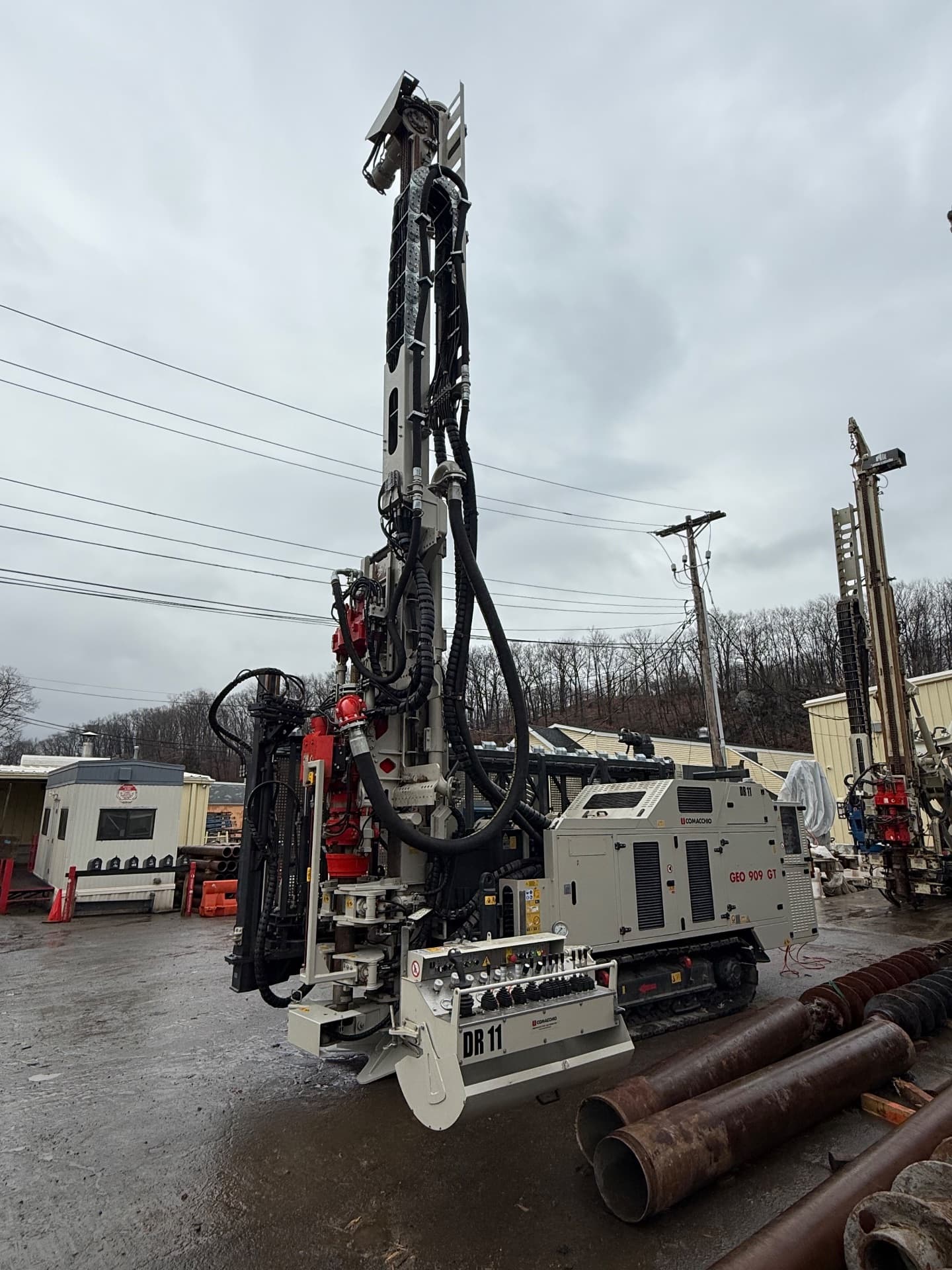

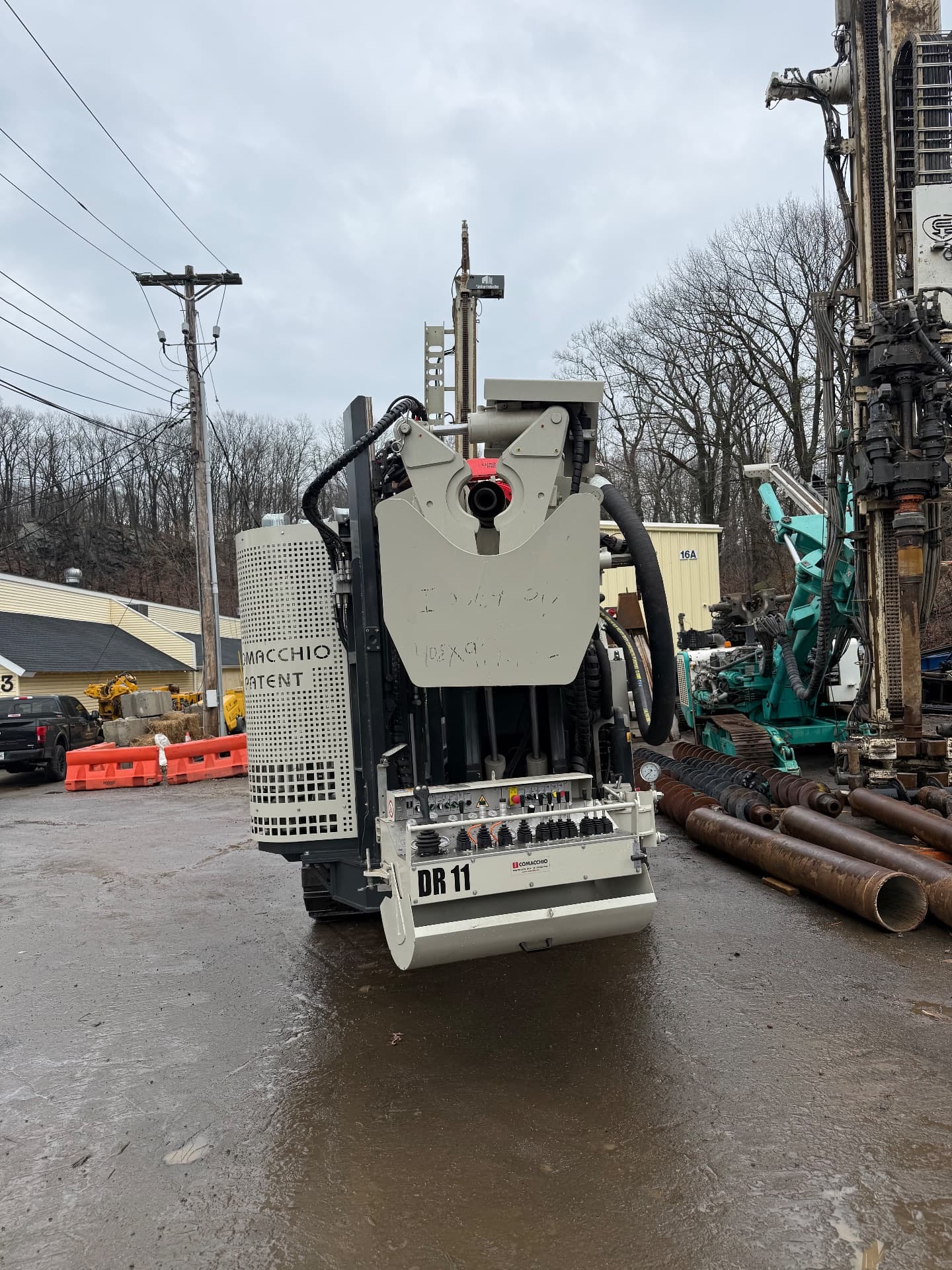

Comacchio DR 11 hydraulic crawler drill rig in an equipment yard with other drilling machinery under a cloudy sky.

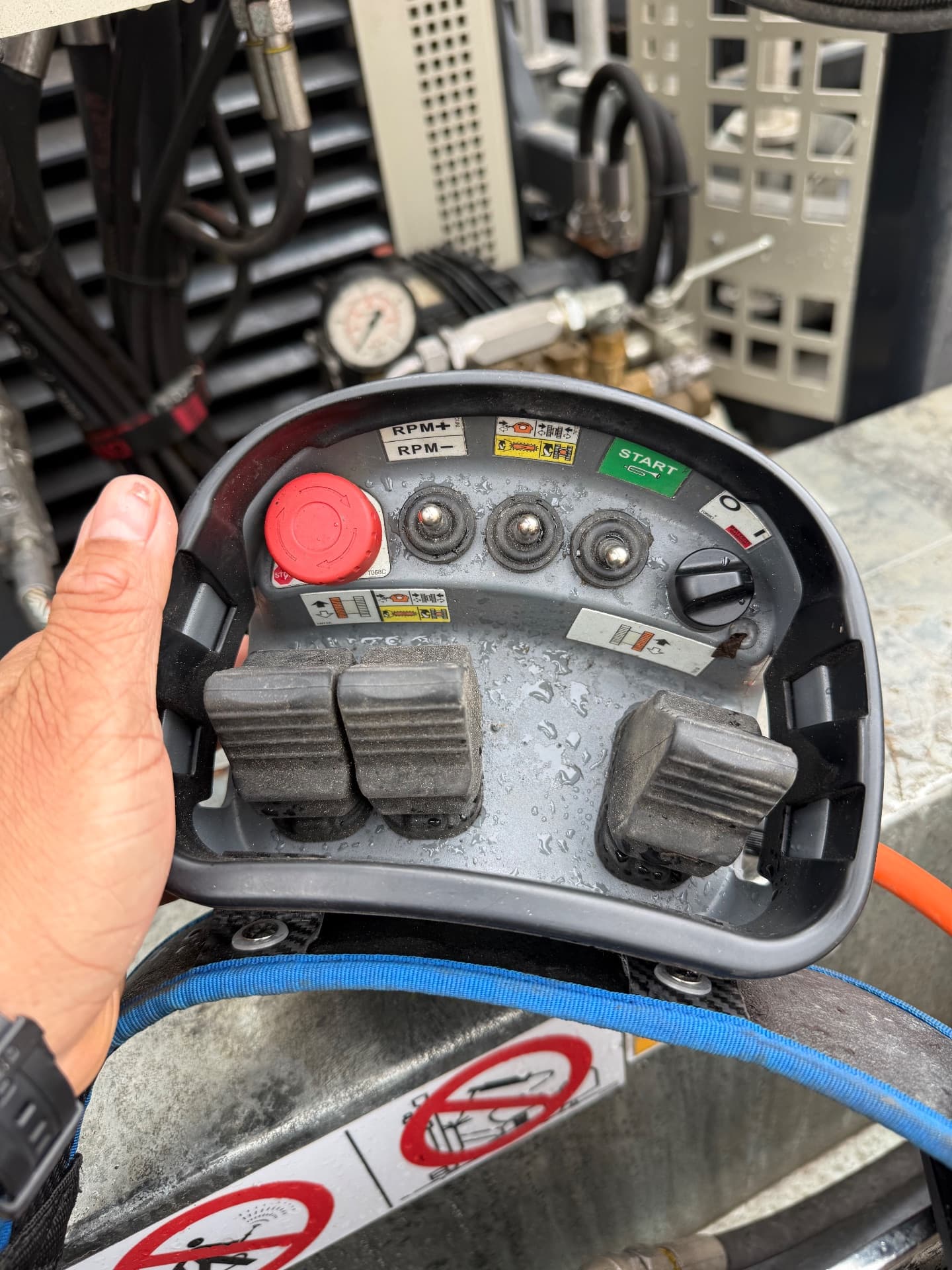

Close-up of a hand holding a wet Comacchio GEO 909 GT drilling rig control panel with RPM, Start, Stop buttons & levers.
Comacchio GEO 909 GT hydraulic crawler drill rig on wet ground in an industrial yard with power lines and augers.

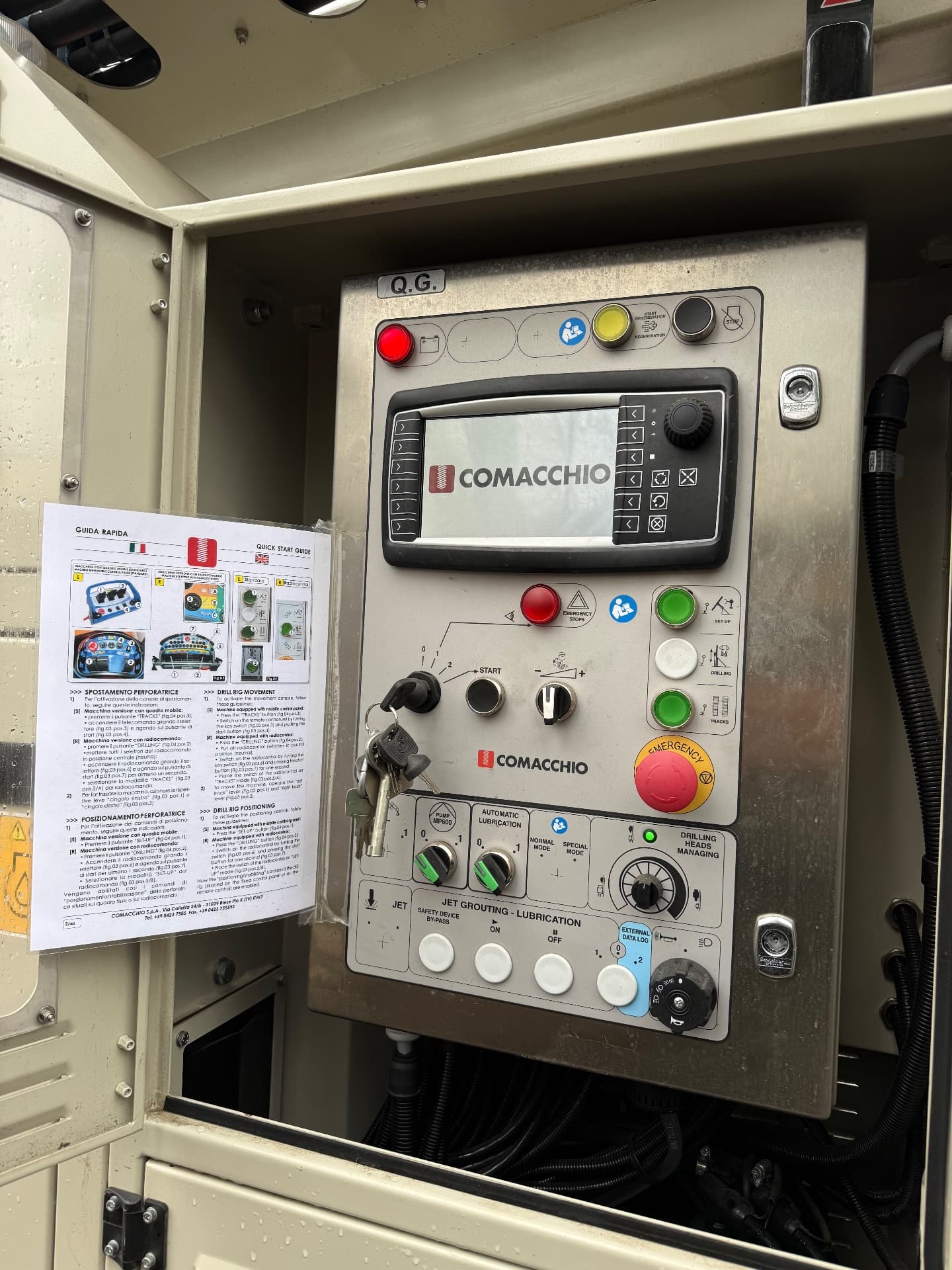

Comacchio drilling rig control panel with screen, buttons, keys, and quick start guide.

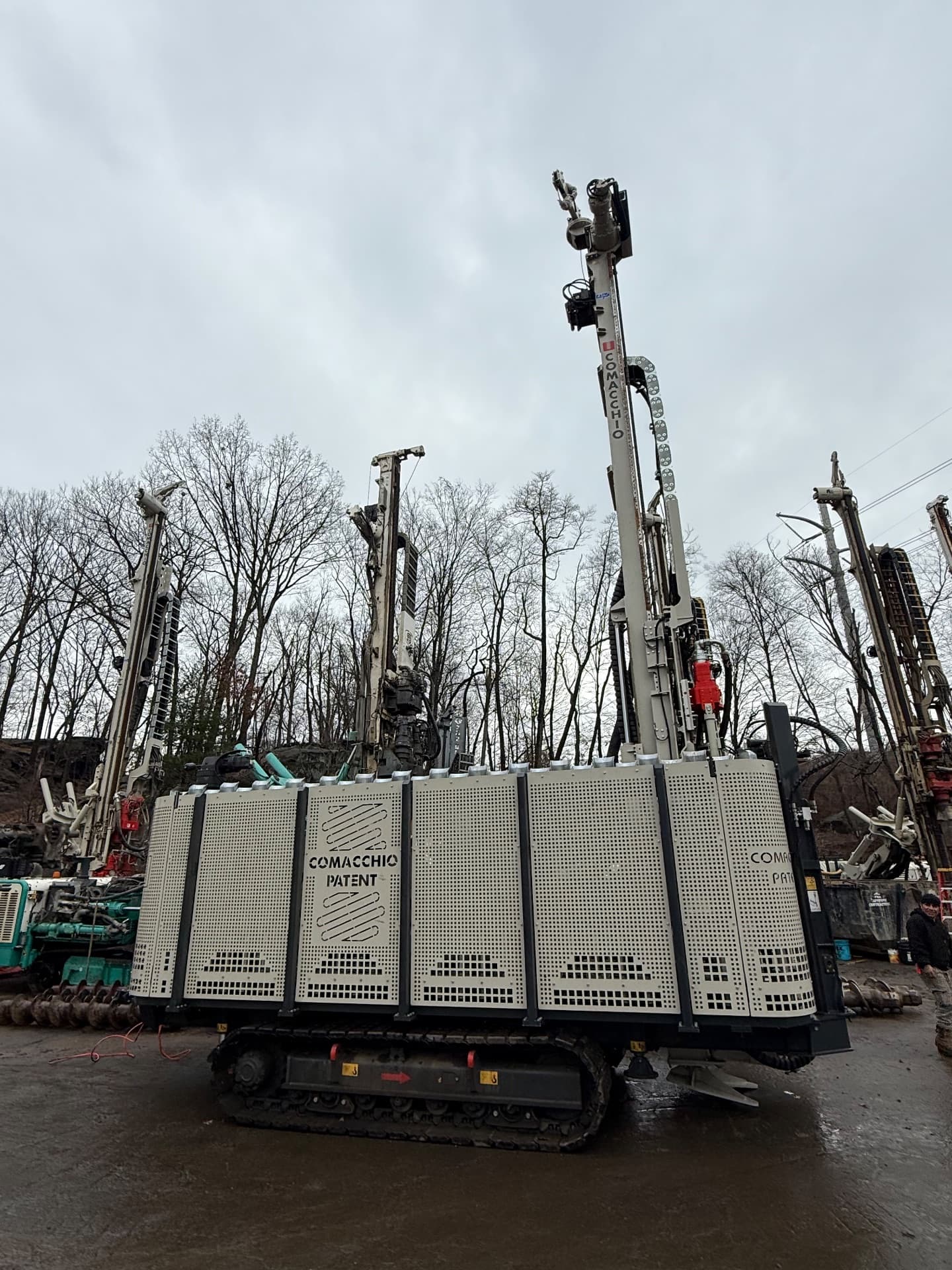

Beige Comacchio GEO 909 GT hydraulic crawler drill rig with control panel, hoses, and drilling mast on wet ground.

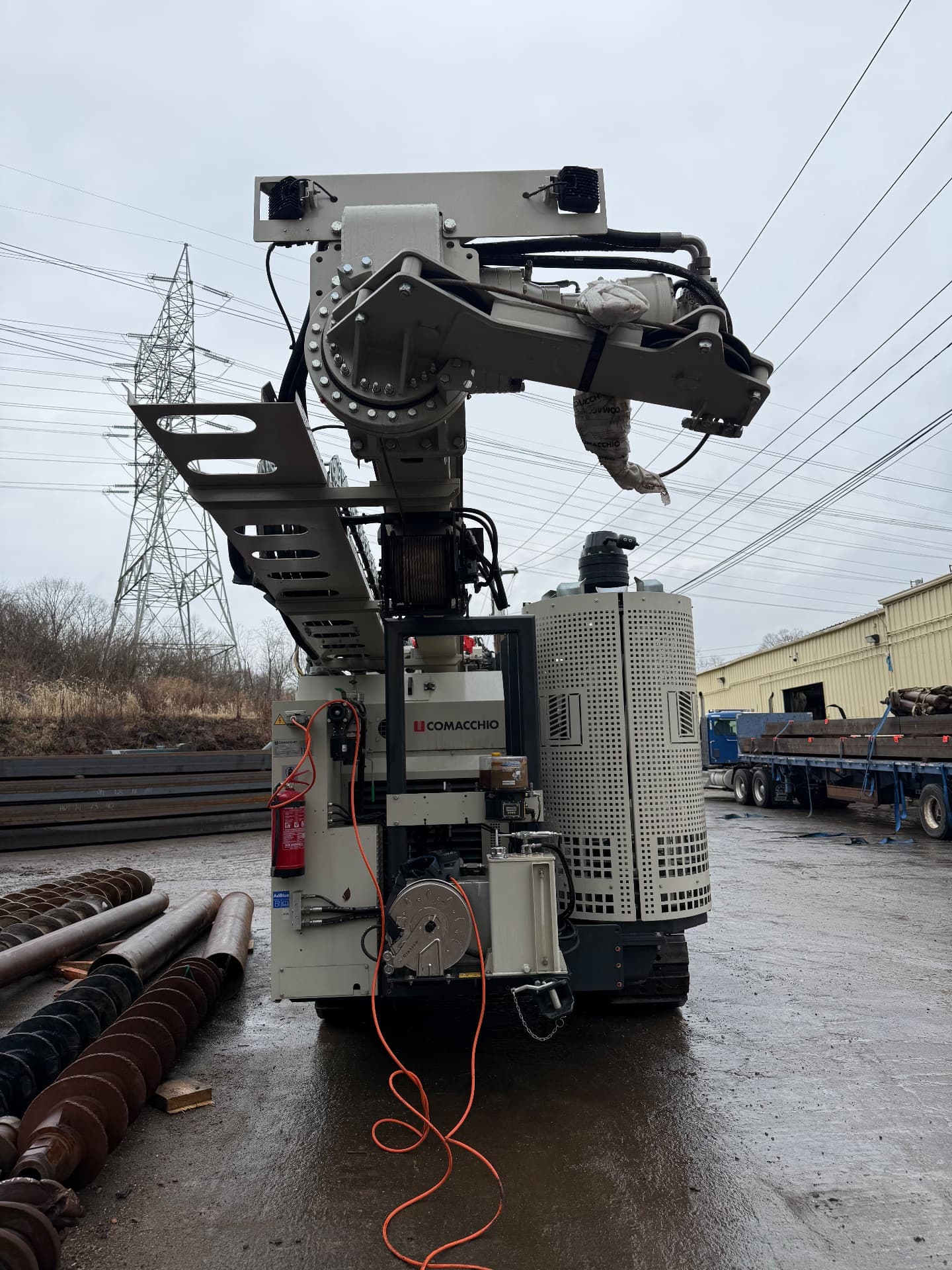

Comacchio GEO 909 GT hydraulic crawler-mounted drill rig for piling/foundation work, outdoors under cloudy sky.
Comacchio GEO 909 GT hydraulic crawler drill rig with tall mast in an industrial yard under a cloudy sky.
Comacchio Geo 909 GT hydraulic crawler drill rig for piling/foundation, operated by a worker.
Comacchio GEO 909 GT hydraulic crawler drill rig for piling/foundation work, on muddy ground with bare trees.
Red and white Comacchio GEO 909 GT hydraulic crawler drill rig with augers, drill head, and hydraulic lines.
Comacchio DR 11 hydraulic crawler drill rig in an equipment yard with other drilling machinery under a cloudy sky.
Close-up of a hand holding a wet Comacchio GEO 909 GT drilling rig control panel with RPM, Start, Stop buttons & levers.
Comacchio GEO 909 GT hydraulic crawler drill rig on wet ground in an industrial yard with power lines and augers.
Comacchio drilling rig control panel with screen, buttons, keys, and quick start guide.
Beige Comacchio GEO 909 GT hydraulic crawler drill rig with control panel, hoses, and drilling mast on wet ground.
Comacchio GEO 909 GT hydraulic crawler-mounted drill rig for piling/foundation work, outdoors under cloudy sky.

Description

HYDRAULIC CRAWLER MOUNTED DRILL RIG GEO 909 GT.

INCLUDES TOOLING:

DRILL ROD D.88,9 W.T.6,3 mm. M/F N. 140 273,70 38.318,00 02"3/8 IF L=2000
Casing 152 mm triple start LH Klemm Thread L=125mm
2 meter rods – 64 pieces
Basic unit features: Track carriage (max width 2.400 mm, pad width 500 mm), Chassis, Standard articulation (mast tilt, mast slide), Mast (Feed stroke 5.200 mm, total length 9.680 mm), Carriage for double head RH3200 & R900, Hydraulic setting for double head, Double head kit RH3200 & R900 (Upper head R900C, Lower head R3200-172), Swivel CTA30, Preventer for double head kit, Clamp assembly (nr. 1 breaker clamp, clamping range 85-200mm self-centering clamp for casing), Rods and casing carousel (patented system, capacity n°64),
At a glance

The 2025 COMACCHIO GEO 909 GT - HYDRAULIC CRAWLER MOUNTED DRILL RIG is a drilling rig listed used in the United States, with no recorded hours. Its track carriage max width is listed as 2.400 mm.

Category
Drilling Rigs
Condition
Used
Location
United States
Brand
COMACCHIO
Model
GEO 909 GT
Hours of Usage
0hr
Year of Manufacture
2025
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller

Specifications

Track Carriage Max Width
2.400 mm
Pad Width
500 mm
Mast Feed Stroke
5.200 mm
Mast Total Length
9.680 mm
Double Head Kit
RH3200 & R900
Upper Head
R900C
Lower Head
R3200-172
Swivel
CTA30
Clamp Assembly
1 breaker clamp
Clamping Range
85-200mm
