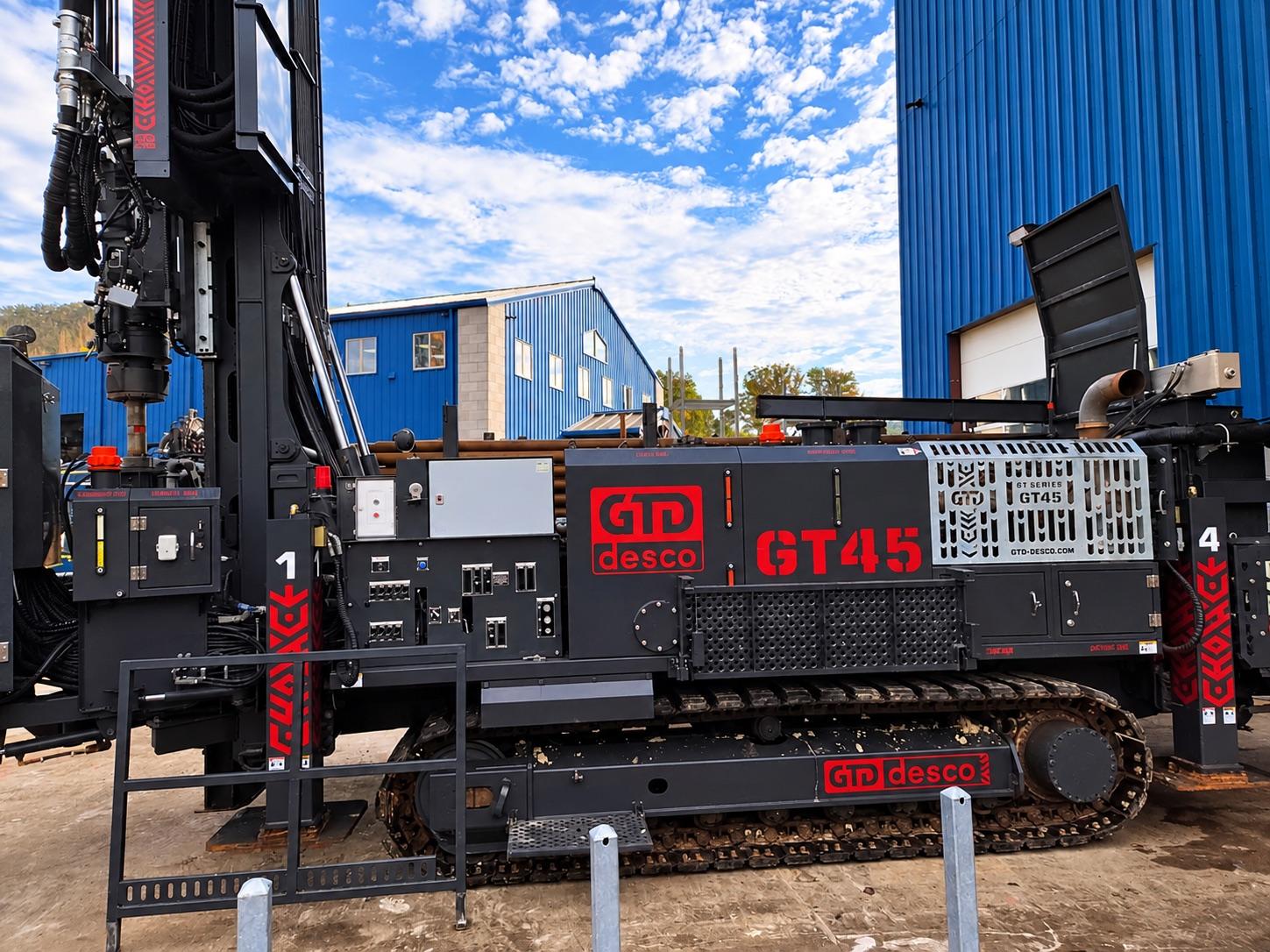

GT45 Geothermal Drill Rig
Description
The GT45 model is ideal for drilling 800ft – 1000ft boreholes productively using mud, air, and hammer drilling methods. It is equipped with our unique rod rack and loading system, which is the most robust, reliable, and safest rod handling system on the market, ensuring maximum safety and efficiency in all drilling operations. The GT series of drill rigs are known for their high productivity and reliability in geothermal drilling, with proven performance in both domestic and commercial applications around the world. These rigs are the number one choice for leading industry professionals, thanks to their versatility and ability to handle a variety of drilling conditions with precision and efficiency.
Specifications
Pull-back
46,300 lbs (21,000 kg)
Engine
Cummins L9 (Stage 5), 380 hp (283 kW)
Drill Rods
20FT
On Board Rods
880 FT (40 rods of 3 ½” pipe) or 720 FT (36 rods of 3 ¾” pipe)
Top Drive
EURODRILL TOP DRIVE – RH16X
Torque (Top Drive)
11,897 lb-ft (16.13 kNm) at 63 rpm, or 3,717 lb-ft (5.04 kNm) at 202 rpm
Max Drilling Depth
Beyond 850FT (built for 800–1,000 ft boreholes)
Length
38′ 7″ (11.8m)
Width
7′ 11″ (2.41m)
Height
10′ 5″ (3.2m)
At a glance
The 2025 GT45 Geothermal Drill Rig is a drilling rig listed used in the United States, with 900 hours on the meter. Its pull-back is listed as 46,300 lbs (21,000 kg).
GT45 Geothermal Drill Rig
Contact
Category
Drilling RigsCondition
Used
Location
United States
Brand
Model
Hours of Usage
900hr
Year of Manufacture
2025
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller
Specifications
Pull-back
46,300 lbs (21,000 kg)
Engine
Cummins L9 (Stage 5), 380 hp (283 kW)
Drill Rods
20FT
On Board Rods
880 FT (40 rods of 3 ½” pipe) or 720 FT (36 rods of 3 ¾” pipe)
Top Drive
EURODRILL TOP DRIVE – RH16X
Torque (Top Drive)
11,897 lb-ft (16.13 kNm) at 63 rpm, or 3,717 lb-ft (5.04 kNm) at 202 rpm
Max Drilling Depth
Beyond 850FT (built for 800–1,000 ft boreholes)
Length
38′ 7″ (11.8m)
Width
7′ 11″ (2.41m)
Height
10′ 5″ (3.2m)
