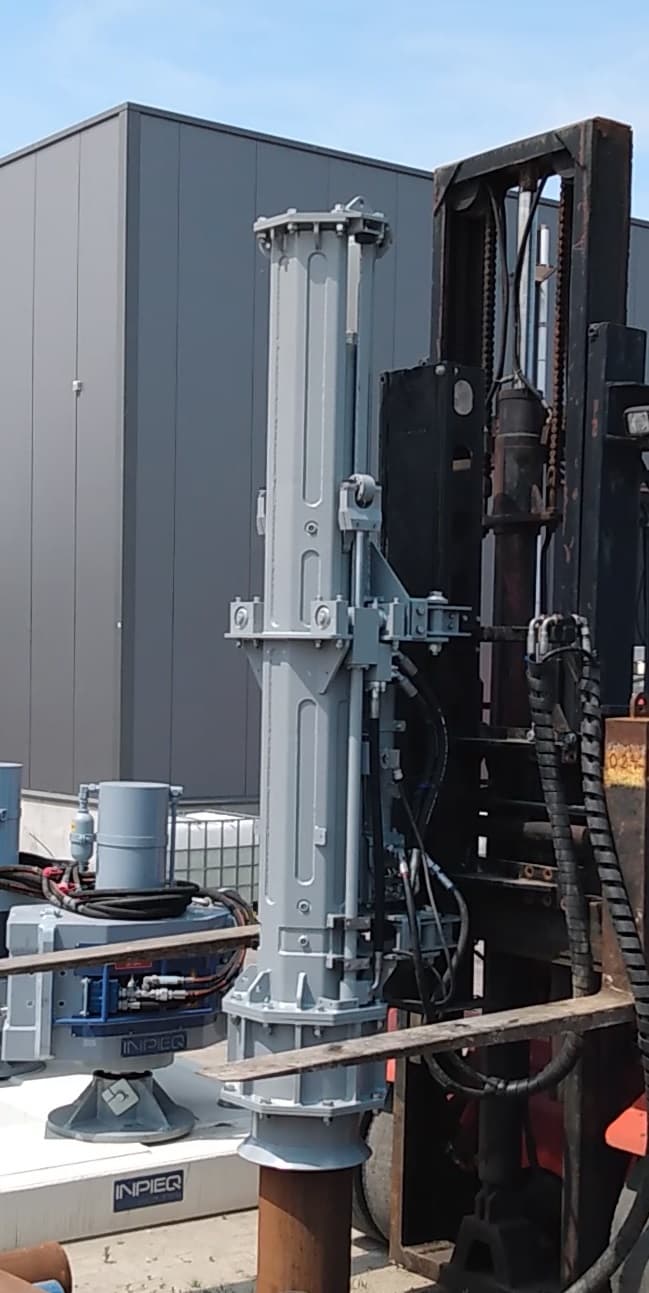

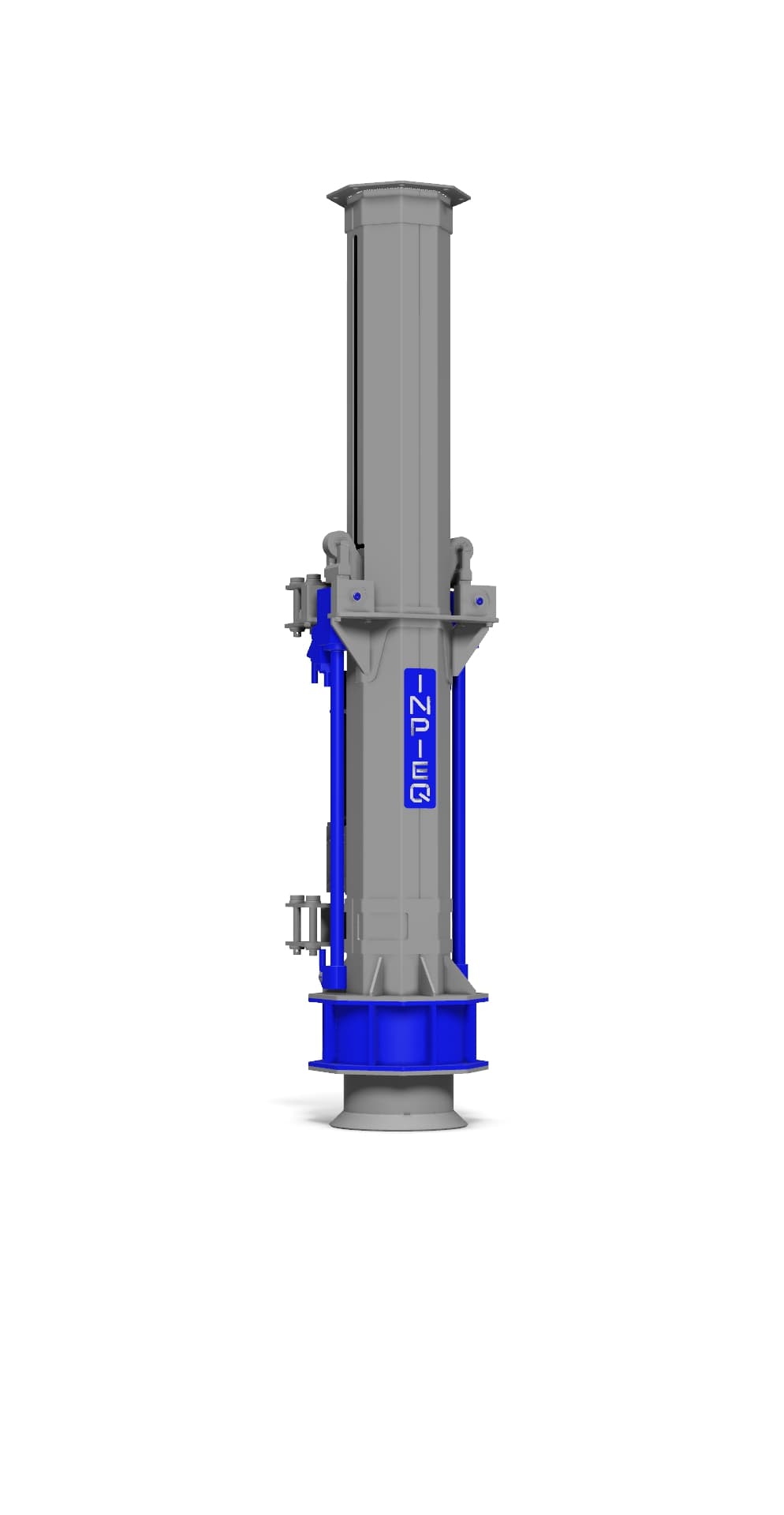

INPIEQ IHE-20 Compact Accelerated Hammer

INPIEQ IHE-20 Compact Accelerated Hammer
INPIEQ IHE-20 Compact Accelerated Hammer
INPIEQ IHE-20 Compact Accelerated Hammer
INPIEQ IHE-20 Compact Accelerated Hammer
INPIEQ IHE-20 Compact Accelerated Hammer
INPIEQ IHE-20 Compact Accelerated Hammer
INPIEQ IHE-20 Compact Accelerated Hammer
INPIEQ IHE-20 Compact Accelerated Hammer

Description

Description: INPIEQ IHE-20 Compact Accelerated Hammer
Almost brand new, used only for a 4 weeks demo.
Check a data sheet bellow.

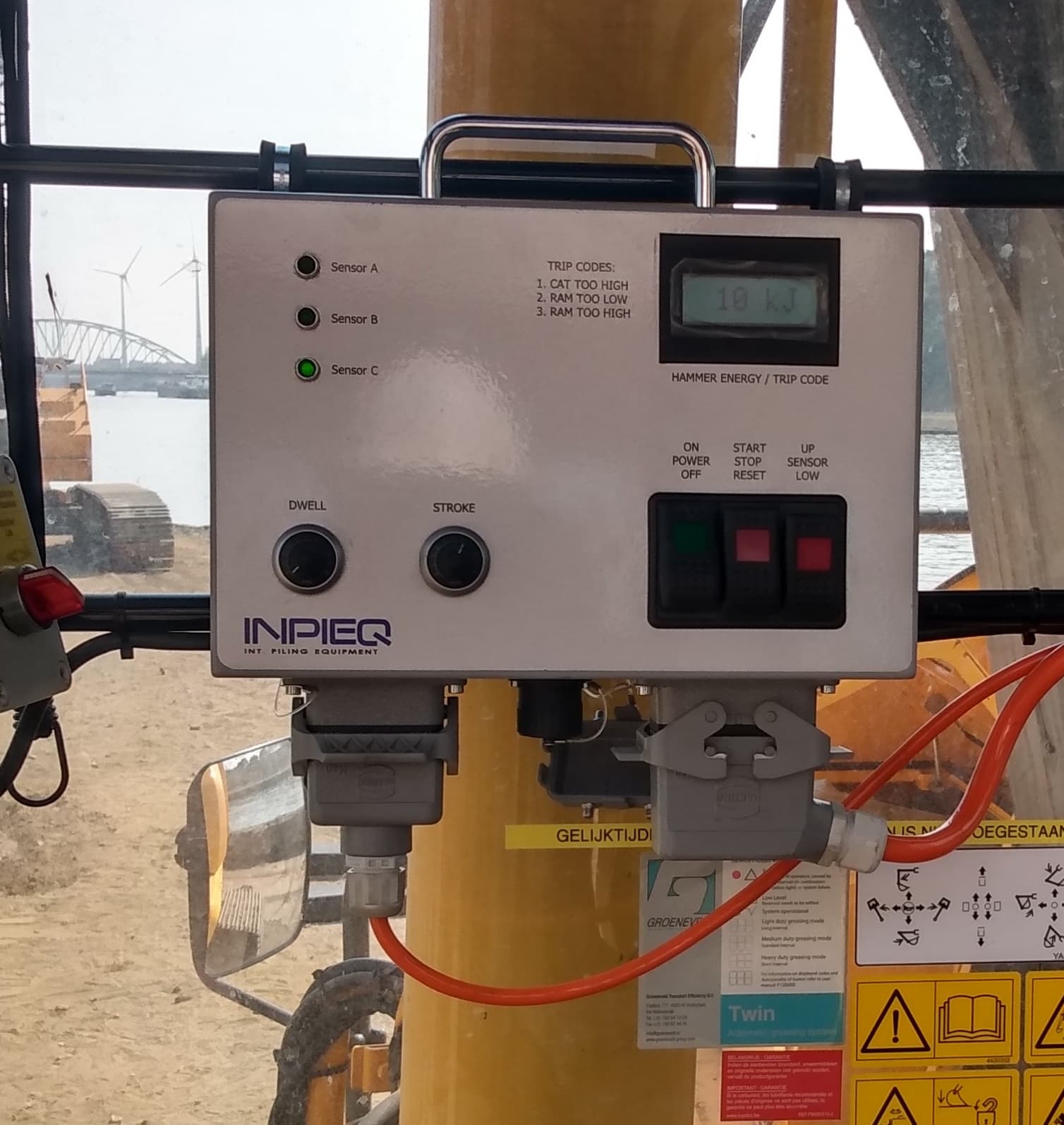

Specifications IHE-20 Max. Energy kNm 20 Drop height mm 50 - 1.000 Blow rate Sl/min 40 - 110 Ram weight kg 1350 Total weight kg 2960 Max. Oil flow l/min 90 Max. Work pressure bar 180 P - R connection 1" - 1-1/4" Dimensions A mm 3460 B mm 3640 C (Drive Cap: 1 / 2) mm 700 / 740 D mm 425 E (Drive Cap: 1 / 2) mm 680 Pile sizes Max. tubular size mm 457 Max. Concrete pile mm 320 Options:  Different leader guides  Different pile caps and sleeves  Silent package  Leader guided on excavator  Sheet pile leg grips  Power-Pack  Data system for monitoring the process
Category
Hydraulic Impact Hammers
Condition
Used
Location
Any
Brand
INPIEQ
Model
IHE20
Hours of Usage
20hr
Year of Manufacture
2024
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller

Get in Touch with Seller

First and Last Name
Company
Email
Phone Number
Leave a Message
